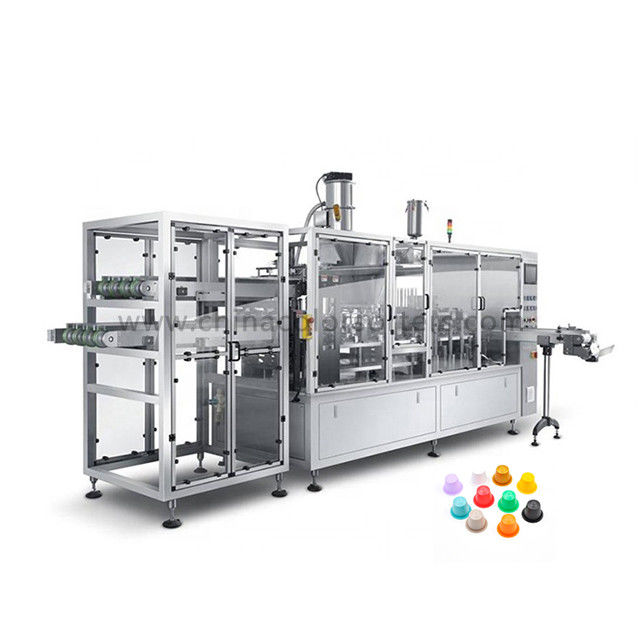

Big capacity coffee capsule filling sealing machine for Nespresso / k-cup / lavazza / Dolce gusto
The coffee capsules produced by our machine can be ensured high quality,high sealing strength,good air tightness and smooth and beautiful appearance.This kind of packing machine has the following characteristics :Stable running, high efficiency, applicable widely, high reliability, high integration degree, high degree of automation, low cost, etc.
Big capacity coffee capsule filling sealing machine for Nespresso / k-cup / lavazza / Dolce gusto is suitable for filling and sealing Nespresso ,k-cup ,lavazza ,dolce gusto and caffitaly all kind of coffee capsule . It is widely used to coffee powder milk powder ,tea powder etc. the speed can be 80-220pcs per min.and also can be easily to depend on customer requirements to change machine
Big capacity coffee capsule filling sealing machine for Nespresso / k-cup / lavazza / Dolce gusto Features
1) Big Capacity output ,expand your business and also easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with carton machine and packing machine
Big capacity coffee capsule filling sealing machine for Nespresso / k-cup / lavazza / Dolce gusto Technical Parameters
|
PRODUCTION SPEED 2 LANES
PRODUCTION SPEED 4 LANES
|
70 capsules /min
140 capsules/min
|
| Installed power |
12KW |
| Machine weight |
2300kg |
| Nitrogen consumption |
200L/min |
| Expected compressed air consumption |
1000L/min |
| Compressed air pressure |
0.5~0.8Mpa |
| Capsule diameter |
20~60mm |

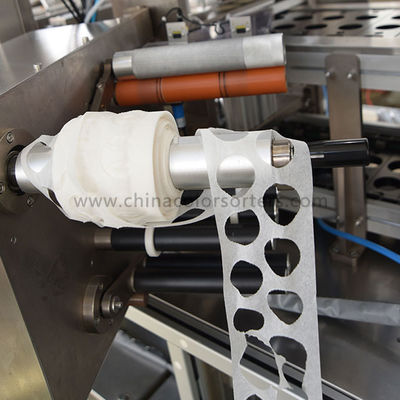

Coffee capsule prefabricated packaging equipment prefabrication line is mainly used to solve the processing process from coffee capsule empty cup (hereinafter referred to as empty cup) to coffee capsule prefabricated semi-finished cup (hereinafter referred to as premade cup). In order to meet the processing requirements from empty cups to prefabricated cups, the prefabricated line is designed as follows: line body → manual cup loading and storage station → automatic cup dropping station → cup dropping detection station → chain plate correction tooling station → cup bottom Punching station → punching inspection station → aluminum foil cutting and welding station → aluminum foil one welding inspection station → aluminum foil two welding station → CCD cup in-body inspection station → water filter tray station → water tray test station → Ultrasonic welding station → filter paper cutting and welding station → CCD cup in-vitro inspection station → UV killing station → finished product blanking station.

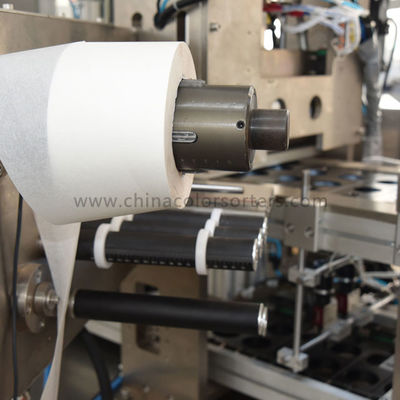

The filling line of Coffee capsule prefabricated packaging equipment is mainly used to solve the process from coffee capsule prefabricated cup (hereinafter referred to as prefabricated cup) to finished processing of coffee capsule. In order to meet the processing requirements of pre-made cups to finished products, the filling line is designed as follows: line body → chain plate cleaning station → manual cup storage station → automatic cup drop station → cup drop detection station → chain plate correction tooling Station → Static Elimination Station → UV Killing Station → Empty Cup Weighing Station → Filling Station → Full Cup Weighing Station → Powder Leveling Station → Water Dividing Film Punching Welding Station → Water Dividing Film Inspection Station Position → Sealing film punching and welding station → Second welding station for sealing film → Feeding station for finished product
